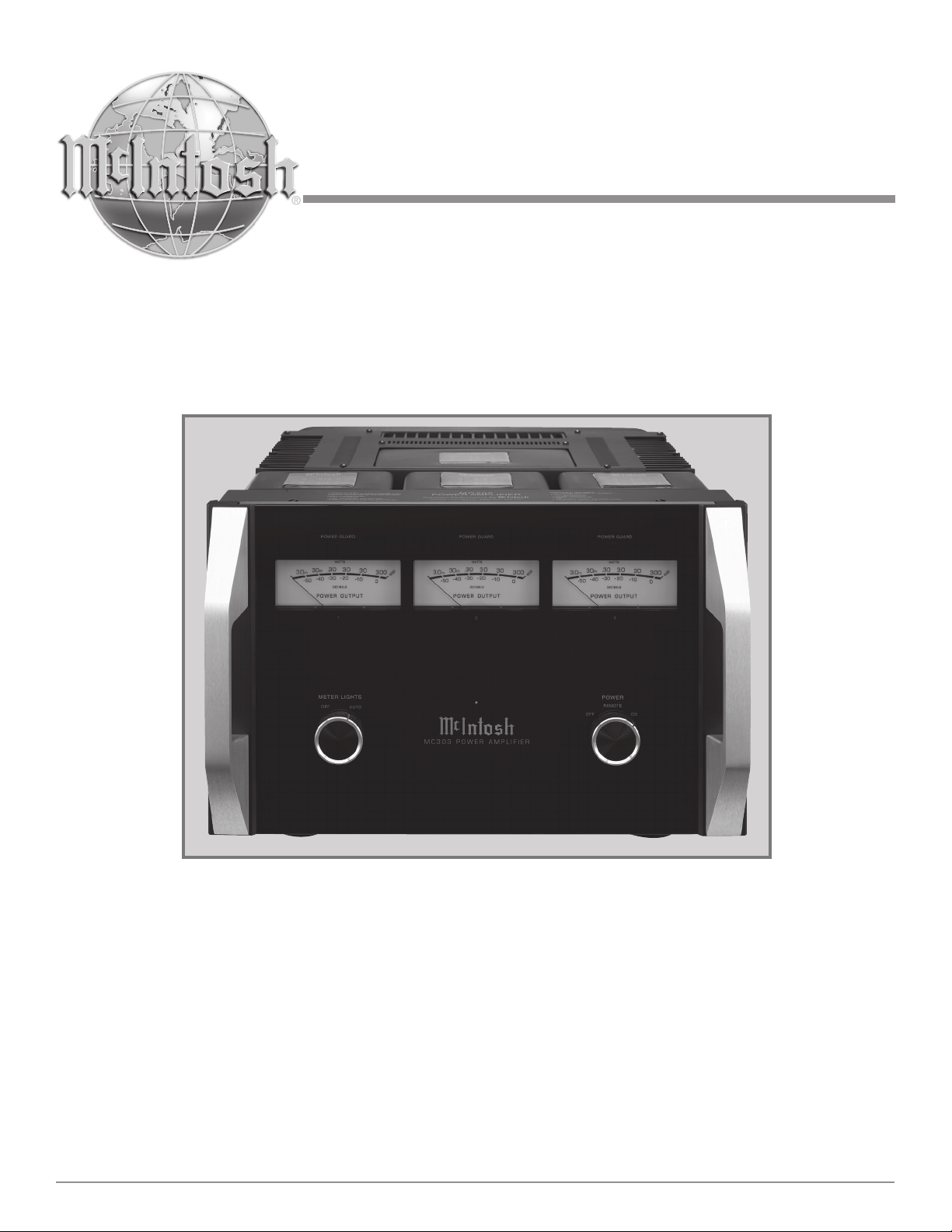

McIntosh MC303 Manual
PDF manual · 20 Pages
English
Advantages and Disadvantages
Advantages
- 300 watts per channel into 2/4/8 ohms with <0.005% THD, providing abundant clean power.
- Power Guard and Sentry Monitor protection preserve speaker and amplifier integrity under overloads.
- Proprietary Autoformers ensure optimal impedance matching and DC protection for loudspeakers.
- Massive power supply and large transformer/capacitors deliver stable, low-noise performance and strong dynamic headroom.
- Illuminated glass front panel, meters, and mirror-finish chassis combine premium aesthetics with useful feedback.
Disadvantages
- Very heavy (around 155 lbs) — requires multiple people for safe handling and limits portable use.
- Large physical size demands generous cabinet space and careful ventilation planning.
- High power consumption and heat dissipation require adequate room airflow despite convection cooling.
- Complex multi-channel connections and remote control wiring may be daunting for inexperienced users.
- Uses banana plugs only in US/Canada; some connector limitations for international convenience.
Ask a Question
Frequently Asked Questions
The MC303 delivers 300 watts continuous average power per channel into 2, 4, or 8 ohm loads, with total harmonic distortion typically 0.005% or less across 20Hz–20kHz.
Is this answer helpful?
Power Guard continuously compares input and output waveforms and, if overdrive is detected, engages a dynamic attenuator to prevent clipping and ultrasonic distortion. It activates with differences beyond about 0.3%, reducing distortion without audible side effects.
Is this answer helpful?
Use a single loudspeaker per amplifier channel wired to the matching 2, 4, or 8 ohm output taps. Follow the provided AWG guide for cable length: for example, use 12AWG for 2 ohm up to 25 ft, 10AWG up to 50 ft, and 8AWG up to 100 ft to minimize power loss.
Is this answer helpful?
No. The MC303 relies on extensive heat sink area (over 2,100 in²) and efficient design for convection cooling. Still, allow recommended clearances and consider quiet ventilation in enclosed cabinets to maintain safe operating temperatures.
Is this answer helpful?
Yes. The MC303 features Power Control inputs and outputs (typically +5V). It supports remote turn-on from a McIntosh A/V Control Center and provides delayed Power Control Out for staggered amplifier startup to avoid surge issues.
Is this answer helpful?
The MC303 includes Sentry Monitor output transistor protection, thermal protection circuits, and Power Guard. If overheating occurs, the amplifier mutes audio and may illuminate Power Guard LEDs until safe temperature is restored.
Is this answer helpful?
Yes. The amplifier weighs about 155 lbs and requires at least two people to move. Maintain minimum clearances (6" top, 2" bottom, 1" sides) and follow grounding, ventilation, and wiring safety instructions to avoid damage and electrical hazards.
Is this answer helpful?
Product Description

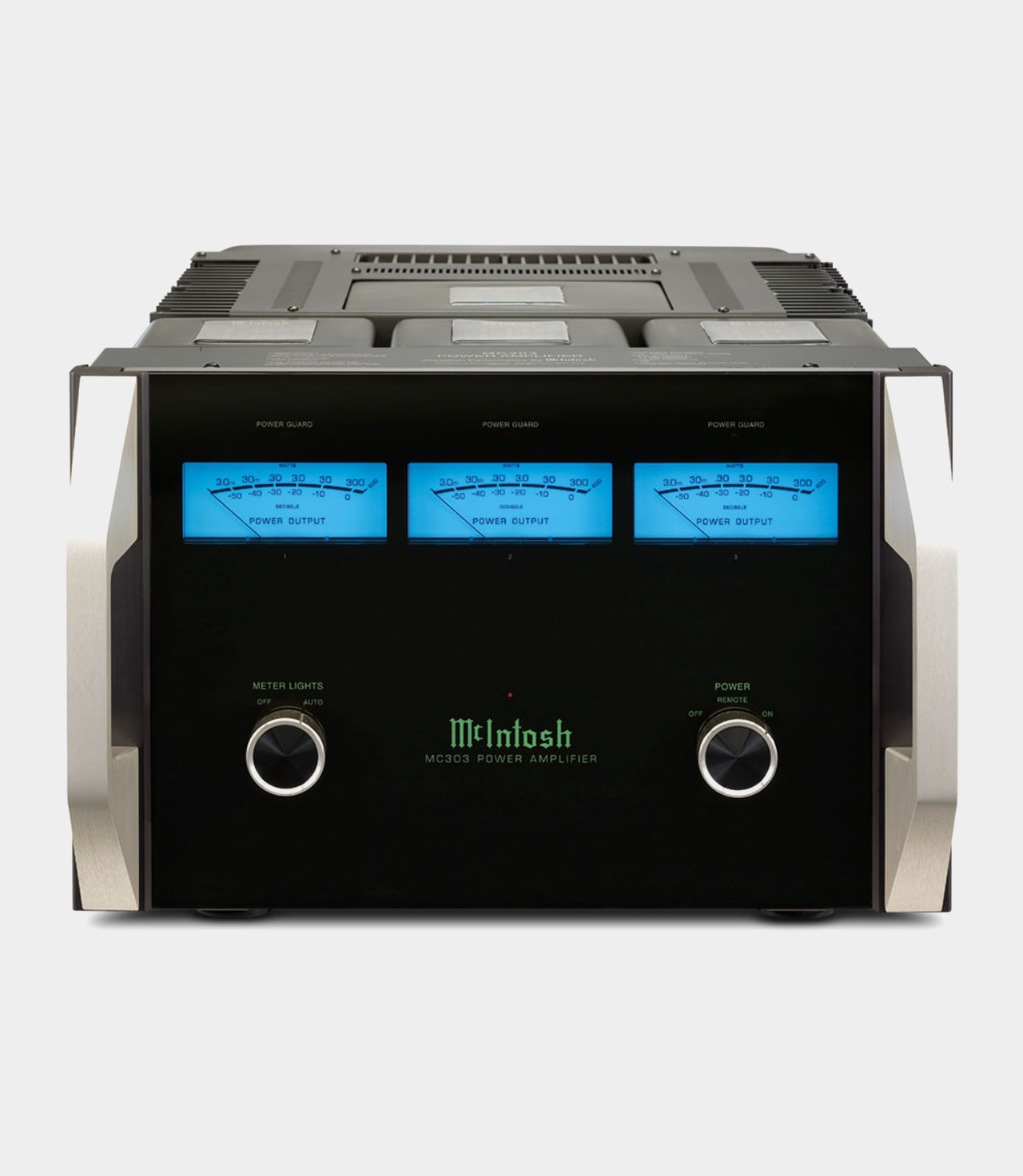

McIntosh MC303 — Power, Precision, and Professional Build
The McIntosh MC303 is a high-current, three-channel power amplifier built for listeners who demand uncompromising performance and rock-solid reliability. Delivering 300 watts per channel into 2, 4, or 8 ohm loads, the MC303 combines McIntosh engineering traditions — massive power supply, proprietary Autoformers, and low-distortion output stages — to reproduce music with clarity, authority, and minimal coloration. Its heavy-duty construction, illuminated glass front panel, and Super Mirror stainless steel chassis balance form and function for an enduring, premium presence in any high-end audio system.
Designed for both multi-channel home theater setups and high-performance stereo systems, the MC303 supports balanced and unbalanced inputs, remote power control, and precision output metering. Safety and protection are integral: Power Guard prevents clipping and harmful ultrasonic distortion, Sentry Monitor and thermal protection guard the output stages, and built-in autoformers provide ideal impedance matching and speaker protection. The amplifier’s regulated power supply, oversized transformer, and large filter capacitors ensure stable, low-noise operation even under heavy dynamic demands.

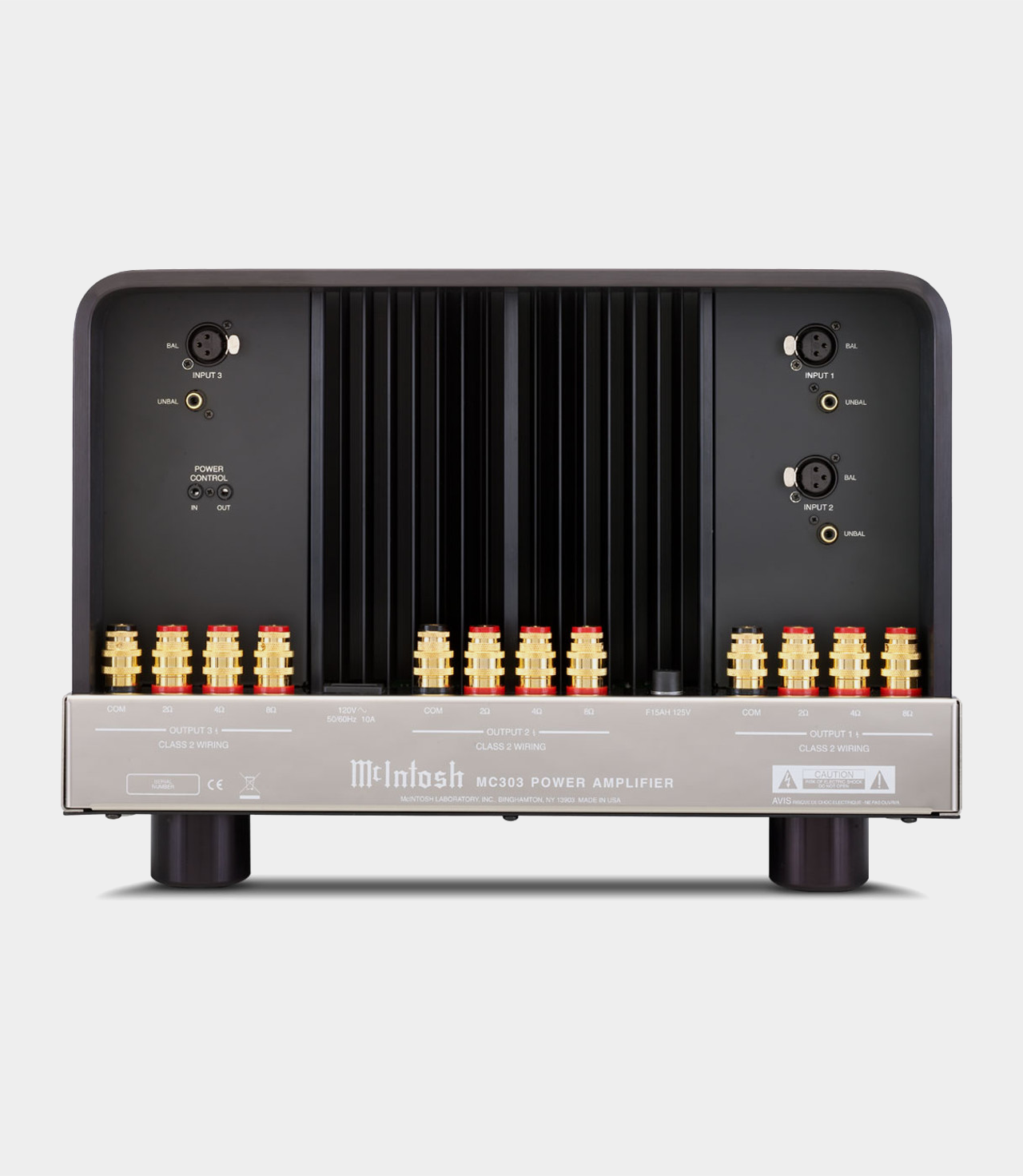

Practical installation features include clear connector guidance, detailed speaker wiring recommendations with AWG tables for varied cable lengths and impedances, and remote meter/control options. The MC303’s design focuses on long-term reliability: extensive heat sink area for convection cooling (no fans required), matched ThermalTrak power transistors for stable biasing and low distortion, and safety-oriented user instructions for ventilation, grounding, and service.
Owners will appreciate thoughtful usability details: illuminated peak-responding watt meters with selectable lighting modes, user-selectable remote or manual power switching, and clear procedures for speaker terminal connections (bare wire, spade lug, or banana plugs). The documentation emphasizes correct installation spacing, proper ventilation, and handling precautions given the amplifier’s substantial weight.
In short, the McIntosh MC303 is engineered to be a workhorse in demanding systems, delivering exceptional power, transparency, and protection for high-quality loudspeakers while maintaining the aesthetic and build quality McIntosh is known for.
Notes
- Use recommended fuse types when replacing the mains fuse in USA/Canada (Bussman ABC-15-R or Littlefuse 314-015P).
- Allow adequate ventilation: 6" above, 2" below, 1" each side; 19-1/2" depth recommended.
- Observe speaker wiring polarity and match speaker impedance to provided output taps (2, 4, 8 ohm).
