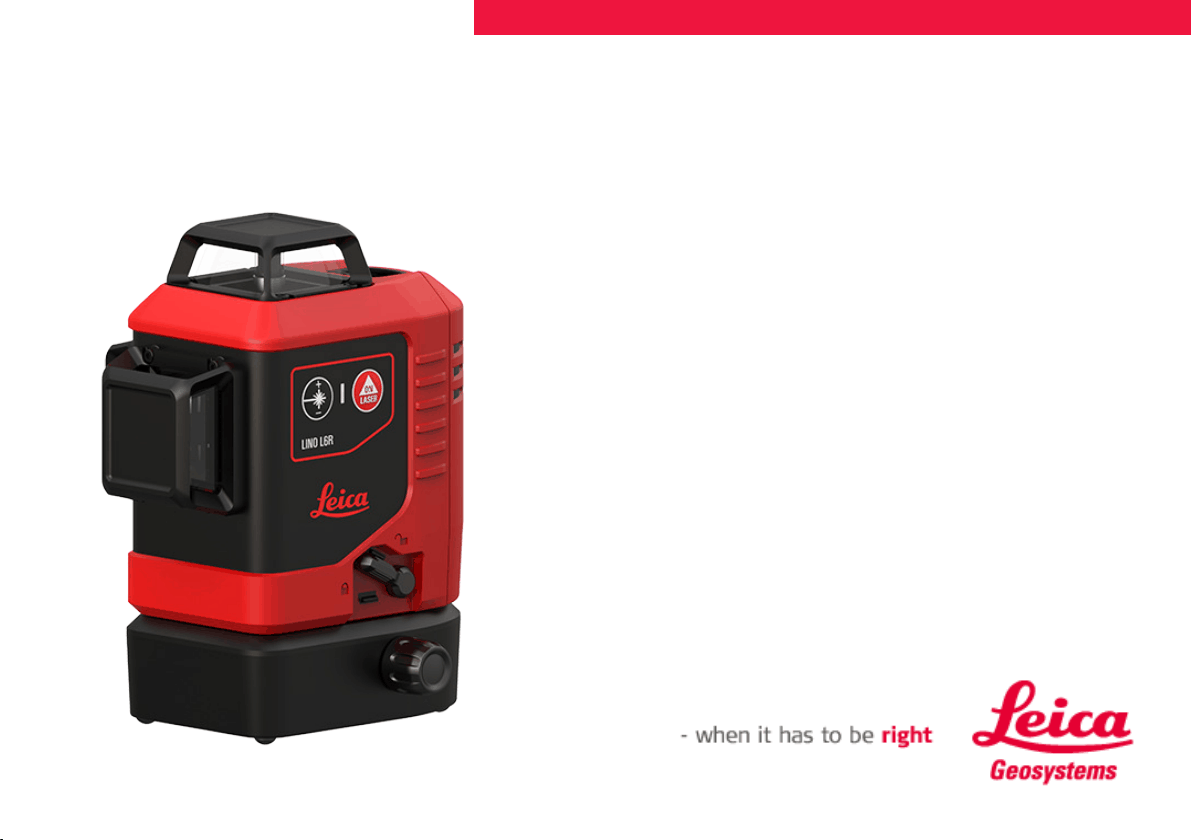

Leica Lino L6R Cross Laser Manual
PDF manual · 26 Pages
English
Advantages and Disadvantages
Advantages
- Highly accurate with self-levelling feature.
- Durable with IP54 protection class.
- Long battery life with Li-Ion and alkaline options.
Disadvantages
- Limited use in extremely hot environments.
- Requires periodic accuracy checks.
- Potential risk near pacemakers due to integrated magnets.
Ask a Question
Frequently Asked Question
The Leica Lino L6R features a self-levelling system, user-friendly interface, durability with IP54 protection, long battery life, and compatibility with smart adapters for precise alignment.
Is this answer helpful?
The Leica Lino L6R offers a levelling accuracy of ±0.2 mm/m, ensuring high precision in various applications. Its self-levelling system helps maintain this accuracy within a ±4° range.
Is this answer helpful?
Yes, the Leica Lino L6R can be used outdoors, provided it is not subjected to excessive dust or water splashes. It adheres to IP54 standards for dust and splash water resistance.
Is this answer helpful?
The Leica Lino L6R offers up to 36 hours of continuous operation with a Li-Ion battery pack and up to 25 hours with alkaline batteries.
Is this answer helpful?
Regularly clean the optics with a damp, soft cloth and avoid aggressive cleaning agents. Ensure the instrument is dry before storage and periodically check its accuracy.
Is this answer helpful?
The Leica Lino L6R comes with a two-year warranty, extendable to three years upon registration on the Leica Geosystems website.
Is this answer helpful?
If the Leica Lino L6R gets wet, dry it thoroughly (up to 70°C) before repacking it into its case to prevent damage.
Is this answer helpful?
Product Description
Leica Lino L6R Cross Laser Manual
Precision and Versatility Combined

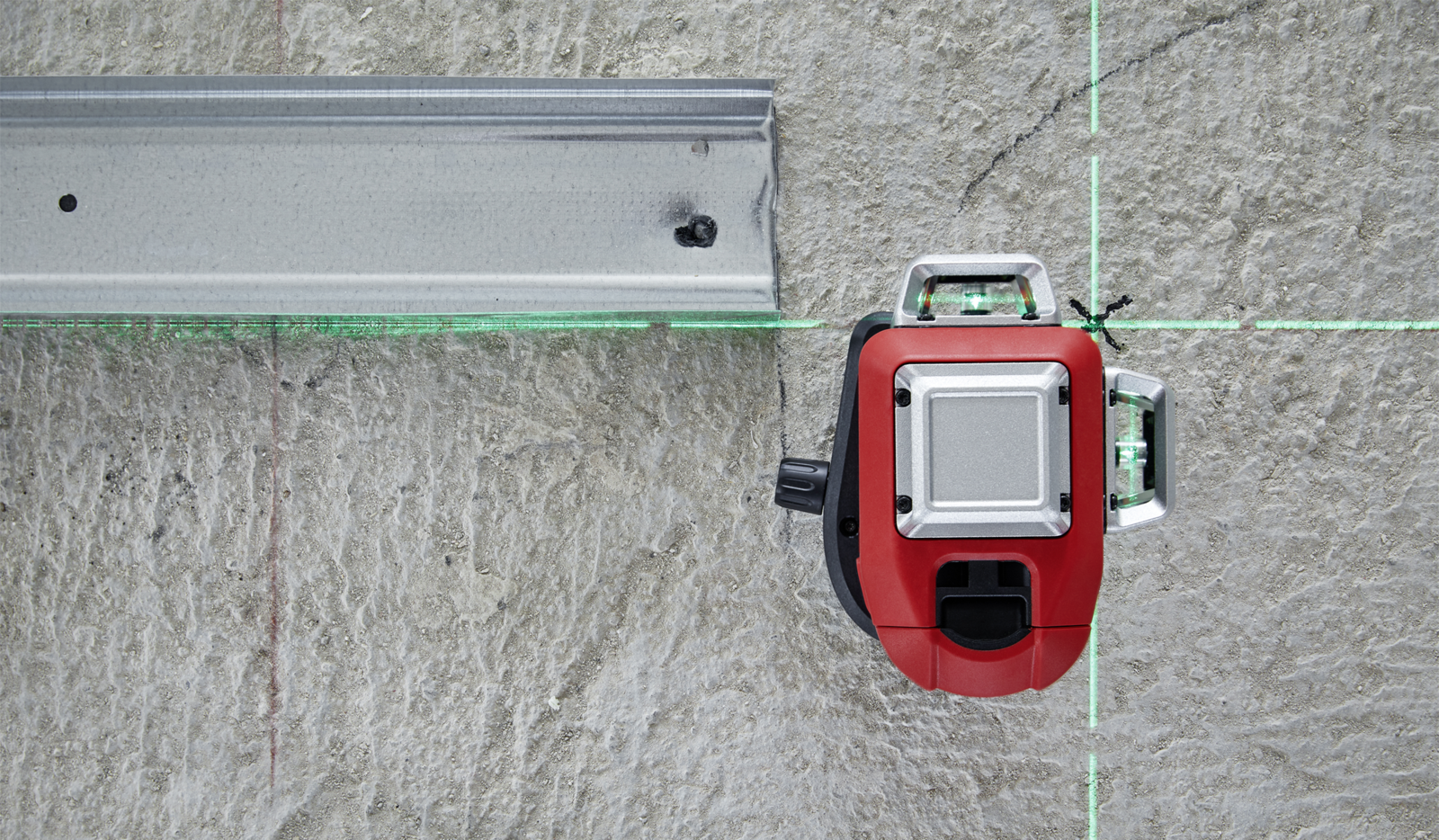

The Leica Lino L6R Cross Laser offers unparalleled functionality with its self-levelling feature and multifunctional use. Designed to facilitate precise framing, leveling, plumbing, transferring, and setting out right angles, this tool is a must-have for professionals. With three 360° line lasers and an integrated fine adjustment knob, it ensures accuracy and efficiency in every task.
Supporting six intersection points (front, back, right, left, up, down) arranged at precise 90° angles, the L6R caters to both indoor and outdoor applications, adhering to IP54 standards for dust and splash water resistance. Available in red and green laser variants, this tool adapts to various lighting conditions and distances, extending up to 70 meters with a receiver.
Key Features
-
Self-Leveling System: The automatic pendulum system ensures the device levels itself within a ±4° range, providing accuracy of ±0.2 mm/m. If positioned outside this range, the laser blinks every 5 seconds to indicate the need for adjustment.
-
User-Friendly Interface: The L6R features a straightforward keypad with a laser key for easy on/off operation, status LED indicators, a battery pack, and an eccentric fine adjustment knob for precise control.
-
Durable and Reliable: With a protection class of IP54, the L6R is designed to withstand limited dust and splash water. It is also shock-resistant up to 1 meter, ensuring durability on job sites.
-
Long Battery Life: The tool offers up to 36 hours of continuous operation with the Li-Ion battery pack. For those who prefer alkaline batteries, it provides up to 25 hours of continuous use.
-

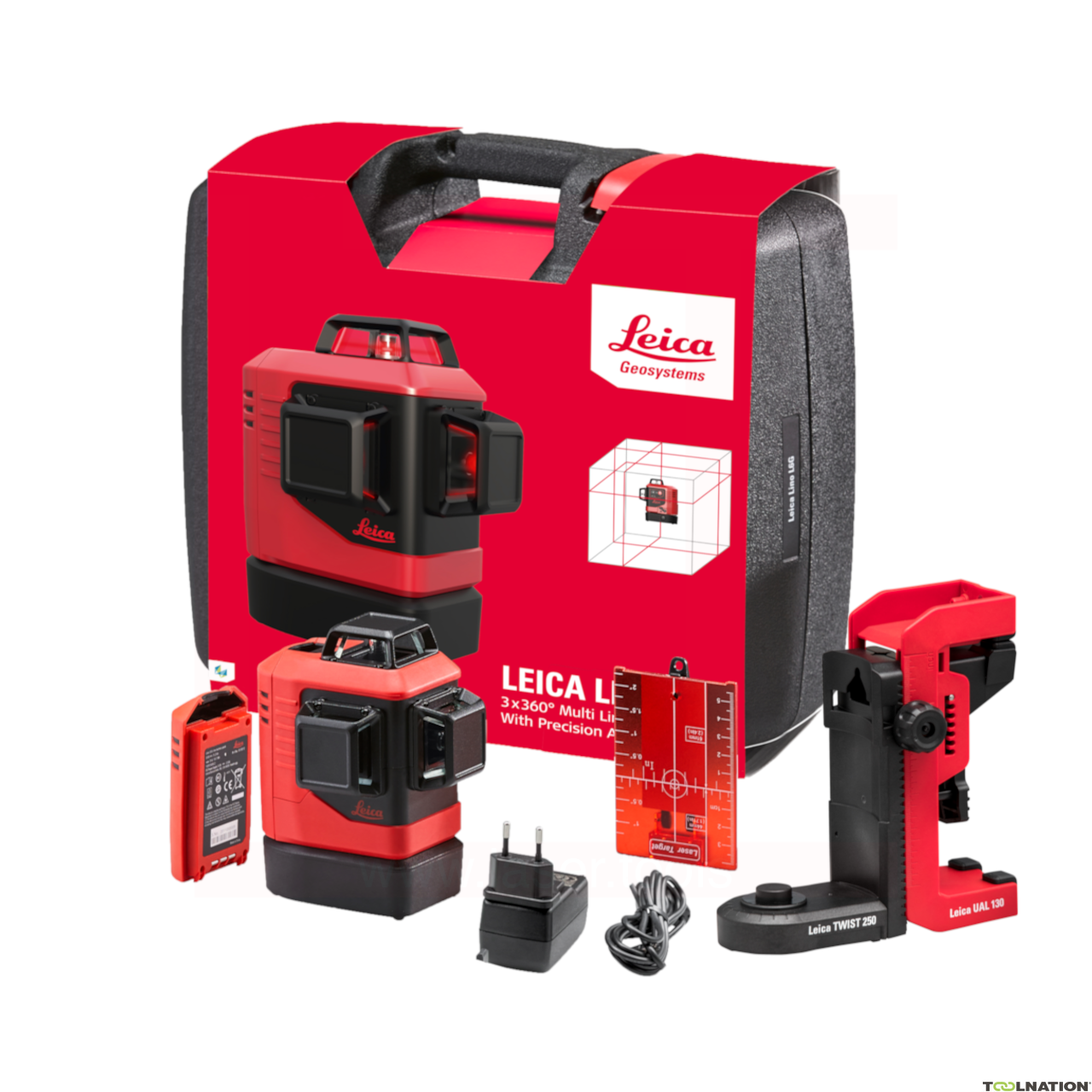

Smart Adapters: The L6R can be easily attached to smart adapters like the Twist 250, allowing for precise alignment of vertical and horizontal laser lines. This flexibility enhances usability in various applications.
Practical Tips and Maintenance
To ensure optimal performance, regularly check the accuracy of your Leica Lino L6R. Clean the optics with a damp, soft cloth and avoid aggressive cleaning agents. If the instrument gets wet, dry it thoroughly before storage.
For extended battery life, charge the Li-Ion battery at temperatures between +5°C to +45°C and store it at -20°C to +30°C. Use only Leica-approved chargers and cables to prevent damage.
Warranty and Service
The Leica Lino L6R comes with a two-year warranty, extendable to three years upon registration. Leica Geosystems recommends an annual check for calibration and functionality to maintain accuracy and reliability.
Safety Precautions
Adhere to safety instructions and local regulations to prevent accidents. The laser should not be used near pacemakers due to integrated magnets. Dispose of batteries and the product according to national regulations, avoiding household waste.
The Leica Lino L6R is a robust, versatile tool designed to deliver precision and reliability in various professional tasks. Its user-friendly features and durable construction make it an invaluable addition to any toolkit.
Notes
- Always set the device in the 'Locked' position when transporting.
- Avoid direct exposure to the laser beam to prevent eye injury. \nNo reviews are available to analyze at this moment.
