beyerdynamic DT 1770 PRO Manual

5.0 · 1 Ratings

PDF manual · 28 Pages

English

M: OA-GPT-5-NAN
page

/ 28

Loading...
2262-beyerdynamic-dt-1770-pro-manual page 3
DT 1770 PRO – Contents / Inhalt / Sommaire / Contenido
3
English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Chat with your beyerdynamic DT 1770 PRO manual using AI

Get instant AI answers from your beyerdynamic DT 1770 PRO manual

Ask anything about the beyerdynamic DT 1770 PRO. Answers come from this manual, with the pages they are based on.

Ask a Question

0/1000

Do you recommend DT 1770 PRO?

Yes No
0
User Pic

Sven Kessler

7 months ago

Does this closed headset (250 ohm) work with my PC motherboard or sound card, or do I need a separate DAC/AMP?

0
User Pic

Manual.ly

7 months ago

It depends on your source output. Since the headset is rated around 250 ohms, many motherboard audio outputs and some basic sound cards may not provide enough voltage/current for full volume and proper drive, which can sound quiet or lack detail. Check whether your audio device supports high-impedance headphones and has adequate headphone output power. If your PC cannot drive 250 ohm properly, we recommend using a dedicated DAC/AMP (or a headphone amplifier) to ensure sufficient power and better sound quality. If you share your sound card or motherboard model, we can help you assess whether it is likely to drive the headset well.

M: OA-GPT-54-NAN
M: OA-GPT-54-NAN

Video Manual

Beyerdynamic DT 1770 Pro 2! Bass and Gaming Awesomeness!

Frequently Asked Questions

A

The DT 1770 Pro uses beyerdynamic's Tesla 2.0 dynamic drivers, engineered to provide high resolution, wide spatial imaging and strong output suitable for mixing, mastering and professional monitoring.

Is this answer helpful?

A

Yes. Ear pads and the headband pad are replaceable. Clean them with a damp cloth or remove and wash with mild soapy water, then dry completely before reattaching. Never use solvent-based cleaners.

Is this answer helpful?

A

The DT 1770 Pro ships with a detachable single-sided lockable cable in two variants: a 3 m straight cable and a 5 m coiled cable (stretched). The headphone side uses a 3-pin mini-XLR connector; output is via a gold-plated 3.5 mm jack with a 1/4" adapter.

Is this answer helpful?

A

Key specs: frequency response 5–40,000 Hz, nominal impedance 250 Ω, nominal SPL 102 dB, max SPL 125 dB, THD < 0.05% (1 mW / 500 Hz), nominal power handling 200 mW, weight 388 g (without cable).

Is this answer helpful?

A

Yes. Their closed design, high efficiency and high maximum SPL make them well suited for loud environments such as live monitoring and PA reference listening, offering strong isolation and headroom.

Is this answer helpful?

A

With a nominal impedance of 250 Ω, many portable sources may not provide optimal volume or dynamics. A dedicated headphone amplifier or a professional audio interface is recommended for best performance.

Is this answer helpful?

A

Press the small release button on the mini-XLR connector while simultaneously pulling the cable connector from the ear cup. When connecting, ensure the connector locks into place in the ear-cup housing and start with volume set to minimum.

Is this answer helpful?

M: OA-GPT-5-NAN

Advantages and Disadvantages

Advantages

  • Tesla 2.0 drivers deliver high resolution, wide soundstage and excellent detail.
  • Closed design offers strong ambient noise attenuation (approx. 18–21 dBA).
  • Replaceable pads, headband and detachable lockable cable for long service life.
  • High max SPL (125 dB) and low distortion (<0.05%) suitable for critical monitoring.
  • Comes with both straight and coiled detachable cables plus a hard protective case.
VS

Disadvantages

  • 250 Ω nominal impedance may require a powerful headphone amplifier for portable use.
  • Weight (388 g without cable) can feel substantial during extended sessions.
  • Closed-back design sacrifices some open-ear-airiness compared to open headphones.
  • Higher price tier than casual headphones, aimed at professional users.
  • Replacement parts or repairs may require contacting authorized service to keep warranty.
M: OA-GPT-5-NAN

Product Specification

Type

Headphones (Over-Ear)

Form factor

Headband

Acoustic design

closed

Microphone

no

Connection

3.5mm jack, 6.35mm jack

Wireless

no

Cable

9.84 ft, single-sided, detachable, coiled cable

Frequency range

5Hz-40kHz

Impedance

250Ω

Sensitivity

102dB

Color

black

Weight

0.86 lb

M: OA-GPT-54-NAN

Product Description

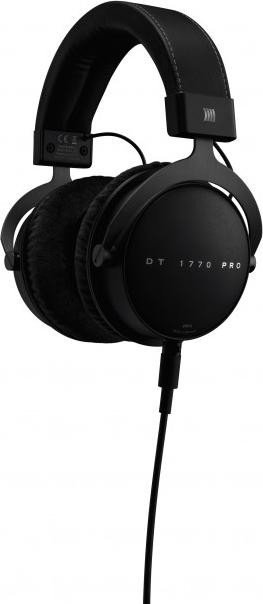

beyerdynamic DT 1770 Pro — Premium Studio Headphones

The beyerdynamic DT 1770 Pro is a closed-back, professional studio headphone built around Tesla 2.0 drivers to deliver high resolution, wide soundstage and strong output levels. Designed for mixing, mastering and critical monitoring, the DT 1770 Pro balances clinical detail with musicality, making it suitable for sound engineers, producers and musicians working in loud environments or around PA systems.

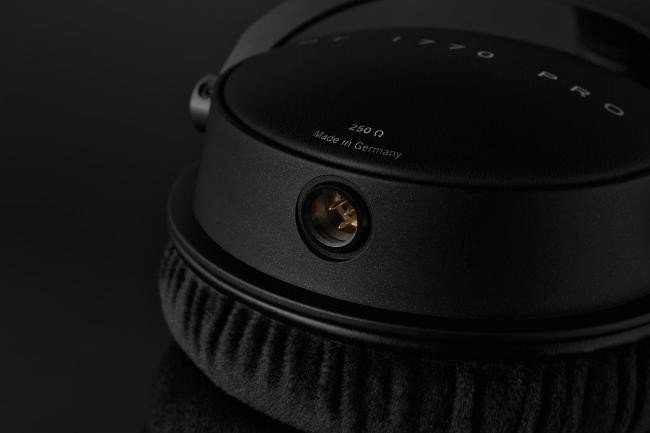

Comfort and durability are central to the design: replaceable ear pads (velour and leatherette options) and a swappable headband pad provide long-term wearability and hygiene. The detachable, single-sided lockable cable (3 m straight and 5 m coiled included) connects with a rugged 3-pin mini-XLR and ships with a gold-plated 3.5 mm jack and 1/4" adapter. A hard case is supplied for secure transport and storage.

Technical highlights include a wide frequency response (5–40,000 Hz), nominal impedance of 250 Ω, nominal SPL of 102 dB and a maximum SPL of 125 dB. Low distortion (< 0.05% at 1 mW / 500 Hz) and 200 mW nominal power handling ensure clean performance at high levels. Ambient noise attenuation is strong (approx. 18 dBA with velour, 21 dBA with leatherette), making these headphones effective in noisy monitoring situations.

Maintenance is straightforward: wipe pads with a damp cloth or remove and clean with mild soapy water when needed; avoid solvents and ensure components are fully dry before reassembly. User-replaceable components extend product life, while more involved repairs should be handled by authorized beyerdynamic service to maintain warranty.

For safety, adhere to recommended exposure limits for sound levels (e.g., 85 dB SPL for up to 8 hours, 100 dB SPL for up to 15 minutes) and always start with volume low when connecting. The closed, high-efficiency design provides excellent isolation and headroom for professional use.

Notes

  • Includes both straight (3 m) and coiled (5 m stretched) detachable cables and a hard case.
  • Replaceable pads and headband components ensure long-term serviceability.
  • Ideal for studio mixing, mastering, live monitoring and loud-stage environments.
