AVM FRITZ!Repeater 3000 AX Manual

4.8 · 39 Ratings

PDF manual · 96 Pages

English

M: OA-GPT-5-NAN
page

/ 96

Loading...
1695-avm-fritzrepeater-3000-ax-manual page 1
Manual

Chat with your AVM FRITZ!Repeater 3000 AX manual using AI

Get instant AI answers from your AVM FRITZ!Repeater 3000 AX manual

Ask anything about the AVM FRITZ!Repeater 3000 AX. Answers come from this manual, with the pages they are based on.

Ask a Question

0/1000

Do you recommend FRITZ!Repeater 3000 AX?

Yes No
0
User Pic

Kristina Haase

10 months ago

Will the AVM FRITZ!Repeater 3000 AX integrate into my existing FRITZ!Box Mesh, and can I use the LAN ports for stable connections? Are there any key limitations like mesh between repeaters or 2.4 GHz performance?

0
User Pic

Manual.ly

10 months ago

Yes. The FRITZ!Repeater 3000 AX is designed for seamless FRITZ!Box Mesh integration, so pairing is typically very quick and keeps one consistent WiFi network. It supports WiFi 6 for improved speed and stability, and it includes two LAN ports for connecting devices such as TV, media receivers, consoles, or switches for wired performance. A common limitation is that a Mesh setup between repeaters generally requires a FRITZ!Box as the Mesh controller. Some users also report that 5 GHz performs better than 2.4 GHz, so for maximum throughput prefer 5 GHz when possible.

M: OA-GPT-5-NAN
M: OA-GPT-5-NAN
0
User Pic

Jonas Keller

10 months ago

I have a FRITZ!Box 7590 AX. Is the AVM FRITZ!Repeater 3000 AX easy to add to my Mesh, and do the LAN ports work for a stable wired connection?

0
User Pic

Manual.ly

10 months ago

Yes. If you already use FRITZ!Box, the repeater can be integrated into your existing Mesh WLAN quickly. During setup you just add it via the FRITZ!Box (for example using WPS or the FRITZ!Box Mesh settings) and it should appear automatically as part of your Mesh network. Once paired, it extends coverage while keeping devices on the same Mesh and roaming behavior. The two LAN ports let you connect TVs, media receivers, or other devices via cable, typically resulting in a more stable connection than wireless. WiFi 6 (AX) helps with higher speeds on supported clients, but real-world 5 GHz performance depends on placement and walls. For best results, position it where signal from your FRITZ!Box is still reasonably strong.

M: OA-GPT-5-NAN
M: OA-GPT-5-NAN

Video Manual

Fritz WLAN Repeater 3000 einrichten und verbinden (WLAN-Brücke, LAN-Brücke, Mesh aktivieren)

Frequently Asked Questions

A

Eliminating dead zones and stabilizing multi‑device Wi‑Fi in medium to large homes. Its tri‑band Wi‑Fi 6 and dedicated backhaul keep speeds consistent for streaming, gaming, and smart‑home use.

Is this answer helpful?

A

Yes. It pairs with most routers via WPS and can adopt SSID, password, and encryption. However, full Mesh features like centralized updates and automatic settings sync require a FRITZ!Box with FRITZ!OS 7.00+.

Is this answer helpful?

A

Place it halfway between the router and your devices with minimal obstructions. Aim for a green LED signal, avoid heat sources and metal surfaces, and use the FRITZ!App WLAN to validate location quality.

Is this answer helpful?

A

Yes. Switch to LAN bridge mode and connect a Gigabit LAN port to your router or switch. Wired backhaul improves stability and frees the wireless bands for client devices.

Is this answer helpful?

A

It supports WPA2 and WPA3. You can run mixed WPA2+WPA3 for broader compatibility. Configure encryption and keys via the Wi‑Fi Security menu in the web interface.

Is this answer helpful?

A

Automatic FRITZ!OS updates are enabled by default. You can also trigger updates from the user interface, via the FRITZ!Box Mesh overview, or manually load an image file offline.

Is this answer helpful?

A

Open the repeater’s interface at http://fritz.repeater, go to Wi‑Fi > Guest Access, and enable guest network. In Mesh, it can inherit guest settings directly from the FRITZ!Box.

Is this answer helpful?

M: OA-GPT-5-NAN

Advantages and Disadvantages

Advantages

  • Tri‑band design with dedicated 5 GHz backhaul for stable throughput
  • Mesh integration auto‑syncs SSID, keys, guest access, and updates
  • Fast WPS setup and clear LED guidance for optimal placement
  • Dual Gigabit LAN ports enable reliable wired backhaul
  • WPA2/WPA3 support plus regular FRITZ!OS updates
VS

Disadvantages

  • Full Mesh benefits require a FRITZ!Box with FRITZ!OS 7.00+
  • Placement sensitive to interference and ventilation needs
  • Advanced settings may overwhelm non‑technical users
  • WPA3 compatibility varies across older client devices
  • Best performance depends on correct backhaul configuration
M: OA-GPT-5-NAN

Product Specification

LAN

2x 1000Base-T

Wireless

WLAN 802.11a/b/g/n/ac/ax/h (Wi-Fi 6), simultaneous

Transfer Rate

574Mbps (2.4GHz), 3603Mbps (5GHz), divided into 1x 2402Mbps and 1x 1201Mbps

Security

WPA2, WPA2/WPA3-Transition Mode, WPS

Antennas

internal

Connections

N/A

Power Consumption

11W (consumption, operation), no information (max. power supply output)

Dimensions

7.48x5.71x3.54in

Special Features

TPC/DFS, IPv6, Mesh (separate band, 1201Mbps)

Band Capability

Tri Band (Dual Band simultaneous + separate Mesh Band), Mesh (separate Band, 1201Mbps)

Manufacturer Warranty

five years

Transfer Rate 802.11ax (Wi-Fi 6 / Wi-Fi 6E) 2.4GHz

574Mbps (Spatial Streams: 2x2, Bandwidth: 40MHz, Modulation: 1024-QAM)

Transfer Rate 802.11ax (Wi-Fi 6 / Wi-Fi 6E) 5GHz

Band 1: 2402Mbps (Spatial Streams: 4x4, Bandwidth: 80MHz, Modulation: 1024-QAM or Spatial Streams: 2x2, Bandwidth: 160MHz, Modulation: 1024-QAM); Band 2: 1201Mbps (Spatial Streams: 2x2, Bandwidth: 80MHz, Modulation: 1024-QAM)

Note

Specification of the transfer rate for 802.11ax at 2.4GHz and 5GHz. 802.11ax (2.4GHz) 2x2 40MHz 1024-QAM: 574Mbps, 802.11ax (5GHz Band 1) 4x4 80MHz 1024-QAM/2x2 160MHz 1024-QAM: 2402Mbps, 802.11ax (5GHz Band 2) 2x2 80MHz 1024-QAM: 1201Mbps.

Note #2

WPA3 is only supported with the WPA2/WPA3-Transition Mode "WPA2 + WPA3".

M: OA-GPT-54-NAN

Product Description

AVM FRITZ!Repeater 3000 AX Manual

Powerfully Extend Wi‑Fi With Mesh Intelligence

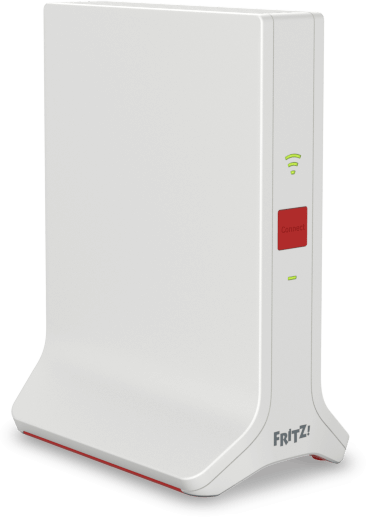

The AVM FRITZ!Repeater 3000 AX is a tri‑band Wi‑Fi 6 extender designed to erase dead zones and stabilize streaming, gaming, and smart‑home devices. With two client radios (2.4 GHz and 5 GHz) plus a dedicated 5 GHz backhaul, it delivers fast, low‑latency links to your router and consistent speeds across rooms and floors.

Seamless Setup and Smart Management

Setup is quick via WPS: press Connect on the repeater and your router to adopt SSID, password, and encryption instantly. In FRITZ! Mesh, the repeater auto‑syncs Wi‑Fi names, guest access, schedules, and updates from a FRITZ!Box, so your network behaves as one unified system. Prefer Ethernet? Switch to LAN bridge mode for rock‑solid wired backhaul through the built‑in Gigabit ports.

Secure by Default, Flexible by Design

Security is current with WPA2/WPA3 support, and you can fine‑tune SSID, encryption, guest network, country settings, and schedules through the intuitive interface at http://fritz.repeater. LED indicators help you place the unit for optimal performance; brightness can be dimmed or turned off. Automatic FRITZ!OS updates keep features and protections fresh, and manual update options are available offline if needed.

Optimized Placement and Cascading

Use the LED strength cues or the FRITZ!App WLAN to find the best location—ideally midway between your router and devices with unobstructed airflow and minimal interference. Need more reach in one direction? Cascade additional Mesh repeaters to push strong Wi‑Fi further without juggling multiple passwords.

Notes

  • Supports routers beyond FRITZ!Box; WPS recommended for fastest pairing.
  • For Mesh features, use FRITZ!OS 7.00+ on the FRITZ!Box and current firmware on the repeater.
  • Factory reset and recovery options are available if you change routers or forget passwords.
